Accessories Break Tank

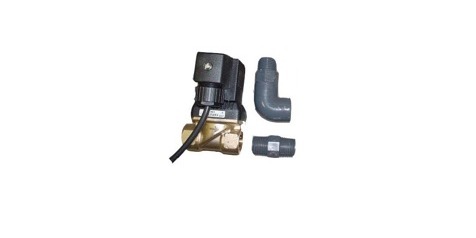

Option large filling capacity (1,5m3 /h)

- Connection watersupply 1/2"
- Solenoid valve is mounted between the water pipe and the tank, on the break tank ( with double nipple 1/2". Mechanical float is replaced by the elbow ( 20 mm with 20 mm x 1/2" M ).

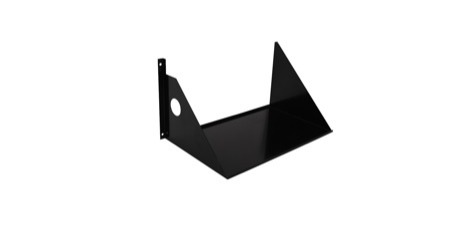

Mounting bracket for Compact breaktank

For mounting the break tank. Mounting bracket is powdercoated. Wall mount with included mounting kit

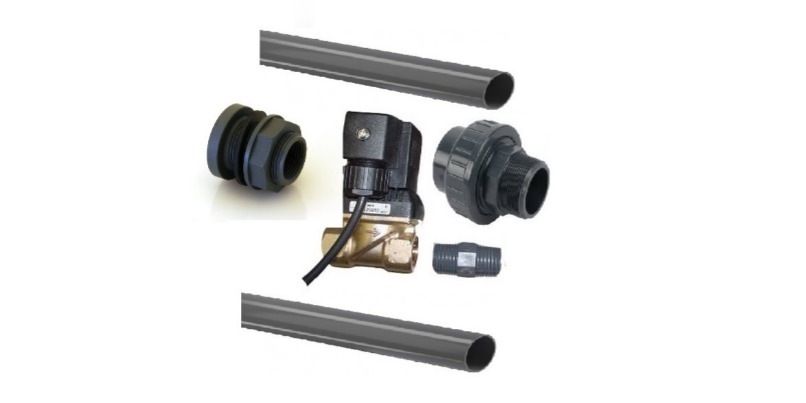

Option:anti siphon valve for breaktank

This optional safety device ensures that the Breaktank can never start siphoning. When can siphoning occur? In those cases where the break tank hangs higher than the level of the basin. In most cases siphoning will not occur when the filter installation is in operation because there is then back pressure from the filter system. However, if the circulation fails, for example due to a power failure, it is possible that the Breaktank will start siphoning, with all the consequences that entails. Think of overflowing the basin or extra wastage of water. This valve shuts off the supply from the break tank to the basin if replenishment is not necessary, even if there is a power failure. With this option extra security is therefore offered!

- Connection size pressure pipe 25mm adhesive connection.
- Solenoid valve is mounted between the break tank pressure valve and the supply point on the pipework of the filter installation, (with the supplied PVC materials for intermediate construction in the pressure pipe. The supplied solenoid valve is electrically connected in the control cabinet.
